Softmagnetic pearls for suppression of interfering impulses
Due to their very high permeability, as well as very low core losses at the high frequencies of a conducted disturbance (150kHz – 30MHz) and a specifically increasing resistance, our small pearls made of nanocrystalline material are ideal for suppressing interference pulses (switching circuit). The pearls are usually attached to the base of electronic devices or threaded like a pearl string (as single-conductor choke). The Curie temperature of the ribbon material is approx. 570 degrees, the properties of the pearls remain largely unchanged up to approx. 120°C in continuous operation. Higher temperatures in the device are theoretically feasible, but must be checked by the customer in the application (an increase in the number of pearls may be necessary) and in order to check the resistance of the coating to the specific customer requirement.
Overview of our soft-magnetic pearls:
| Types / Reference | Nom. Dimensions [mm] | Finished Dimensions [mm] | Lfe (cm) |
Afe (cm²) |
AL nom. @10kHz [μH] 50.000μ |
Finishing | |||||
| OD | ID | H | OD | ID | H | ||||||

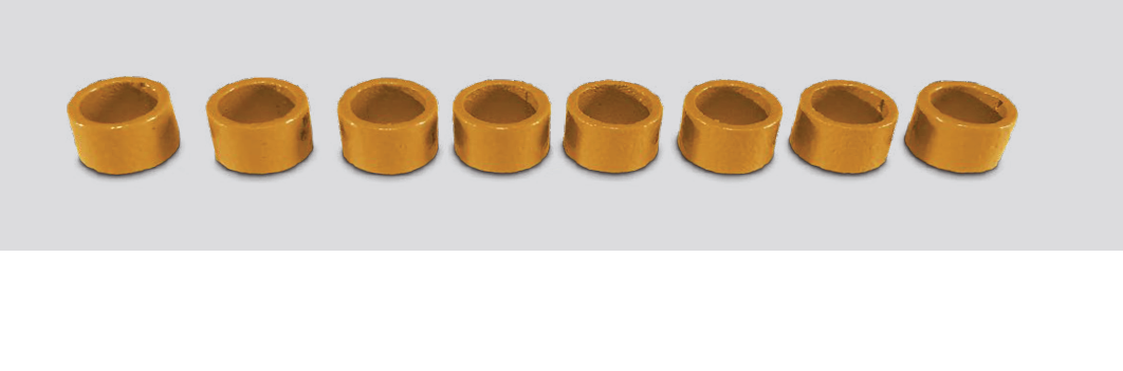

| FS0301- | MRC068 | 3,6 | 1,7 | 3 | spray coated* | 0,83 | 0,02 | 16 | coated orange | ||
| FS0402- | MRC069 | 4 | 2,3 | 3 | spray coated* | 0,99 | 0,02 | 12 | coated orange | ||
| FS0402- | MRC070 | 4 | 2,3 | 2,5 | spray coated* | 0,99 | 0,02 | 10 | coated orange | ||
| FS0402- | MRC071 | 4 | 2,8 | 4,5 | spray coated* | 1,07 | 0,02 | 12 | coated orange | ||
| FS0402- | MRC072 | 4 | 2,3 | 4,5 | spray coated* | 0,99 | 0,03 | 18 | coated orange | ||
| FS0402- | MRC073 | 4,2 | 2,8 | 3 | spray coated* | 1,10 | 0,02 | 9 | coated orange | ||
| FS0402- | MRC074 | 4,5 | 2,8 | 4,5 | spray coated* | 1,15 | 0,03 | 15 | coated orange | ||
| FS0503- | MRC075 | 5 | 3,5 | 4,5 | spray coated* | 1,34 | 0,03 | 12 | coated orange | ||
| FS0503- | MRC076 | 5,2 | 3 | 3 | spray coated* | 1,29 | 0,03 | 12 | coated orange | ||
| FS0603- | MRC077 | 6 | 3 | 3 | spray coated* | 1,41 | 0,03 | 15 | coated orange | ||
| FS0603- | MRC078 | 6,8 | 3,5 | 3 | spray coated* | 1,62 | 0,04 | 14 | coated orange | ||
| FS0703- | MRC079 | 7 | 3,5 | 4,5 | spray coated* | 1,65 | 0,06 | 22 | coated orange | ||
| FS1007- | MRC080 | 10,2 | 7,5 | 4,5 | spray coated* | 2,78 | 0,05 | 10 | coated orange | ||
| FS1108- | MRC081 | 11,3 | 8,5 | 4,5 | spray coated* | 3,11 | 0,05 | 9 | coated orange | ||
| FS1210- | MRC082 | 12 | 10 | 4,5 | spray coated* | 3,46 | 0,03 | 6 | coated orange | ||
| FS1311- | MRC083 | 13 | 11,3 | 3 | spray coated* | 3,82 | 0,02 | 3 | coated orange | ||
| FS1512- | MRC084 | 15 | 12 | 3 | spray coated* | 4,24 | 0,03 | 5 | coated orange | ||
The information is not binding and can be adjusted without prior information.
*Spray coating is used for fixation of the core itself, there is no special confirmation of isolation. Max. dim. change ca. 1mm
